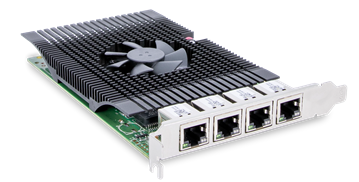

Basler 10GigE Interface Card, 4-CH#
信息
照片的外观可能与实际产品略有不同。
信息
- On Windows, to operate this interface card, use the correct Marvell driver for the AQC113 chipset. The Marvell AQtion 64-bit driver is available within the pylon installation in the \Development\Redist\Drivers directory. Alternatively, you can also download the latest driver from the product page of the 10GigE Interface Card, 4-CH, under Specifications / Software, or from the Marvell website.
- 在 Linux 中，接口卡通常由 Linux 内核原生支持。
主要功能#
- Validated for GigE Vision
- 自动协商机制
- IEEE 1588 Precision Time Protocol (PTP)
- Use of Basler-assigned MAC address range for simplified identification
通用规格#
| 10GigE Interface Card, 4-CH | |
|---|---|
| 订单号 | 2200002432 |
| Ethernet Controller | Marvell AQC113 |
| Number of Ports/Channels | 4 |
| 端口 | RJ45 |
| Data Rate | 10 Gbps / 5 Gbps / 2.5 Gbps / 1 Gbps / 100 Mbps / 10 Mbps |
| 附加超薄型支架 | 无 |
| PCIe 版本和通道 | 3.0 x8 (compatible with x16) |
| 受支持的 Standard | IEEE 802.3an (10 Gbit/s Ethernet over unshielded twisted pair) IEEE 802.1ax (Link Aggregation) IEEE 802.3 IEEE 802.3ab (1000BASE-T Gigabit Ethernet) IEEE 802.3u (100BASE-TX Fast Ethernet) IEEE 1588 (Precision Time Protocol (PTP)) IEEE 802.3bz (2.5GBASE-T and 5GBASE-T) IEEE 802.1Q (VLAN) |
| Additional Functions | IEEE 1588 Precision Time Protocol (PTP) |
| Power Supply | PCIe |
| 符合标准 | CE, FCC, RoHS Certificates for your 10GigE Interface Card For more information, see the Compliance section of the Basler website. |
| 功耗 | 1.2–19.38 W |
| 针对巨型帧的 最大数据包大小 | Up to 16348 bytes |
巨型帧
If you want to use the maximum packet size for jumbo frames, set the network adapter to its maximum value as described in the 网络配置（GigE 相机） topic. Also set the GevSCPSPacketSize parameter to its maximum size. Bear in mind that most Basler ace 2 cameras only support a packet size of up to 8192 bytes. Basler ace 2 5GigE and Basler racer 2 S 5GigE cameras, however, support a packet size of up to 16332 bytes.
LED 状态指示灯#
| LED | State at 10 Gbps | State at 10 Mbps/100 Mbps/ 1 Gbps/2.5 Gbps/5 Gbps |
|---|---|---|
| 连接 LED | 绿色恒亮 | 橙色恒亮 |
| 网络 LED | 呈绿色闪烁 | 呈绿色闪烁 |
{.large-image}
GigE 接口卡尺寸#
环境要求#
The Basler 10GigE Interface Cards are specified for indoor use only.
| 操作温度 | 0–50 °C (32–122 °F) |
| 存放温度 | -40–85 °C (-40–185 °F) |
| 湿度 | Maximum 90 % relative humidity, non-condensing (specified at 35 °C/95 °F) |
Allow sufficient air circulation to keep the temperature during operation below 50 °C (122 °F). Additional cooling devices are not normally required, but should be provided if necessary.
