Heat Sinks and Active Fan (boost V)#
信息
- The heat sinks aren't suitable for Basler boost R cameras.
- Using an active fan is optional for all Basler boost V cameras, but is recommended for the boA5120-230cc and boA5120-230cm camera models.
Installing a cooling device is only necessary if your application causes the camera to exceed its maximum operating temperature specified in the "Environmental Requirements" section of your camera model topic.

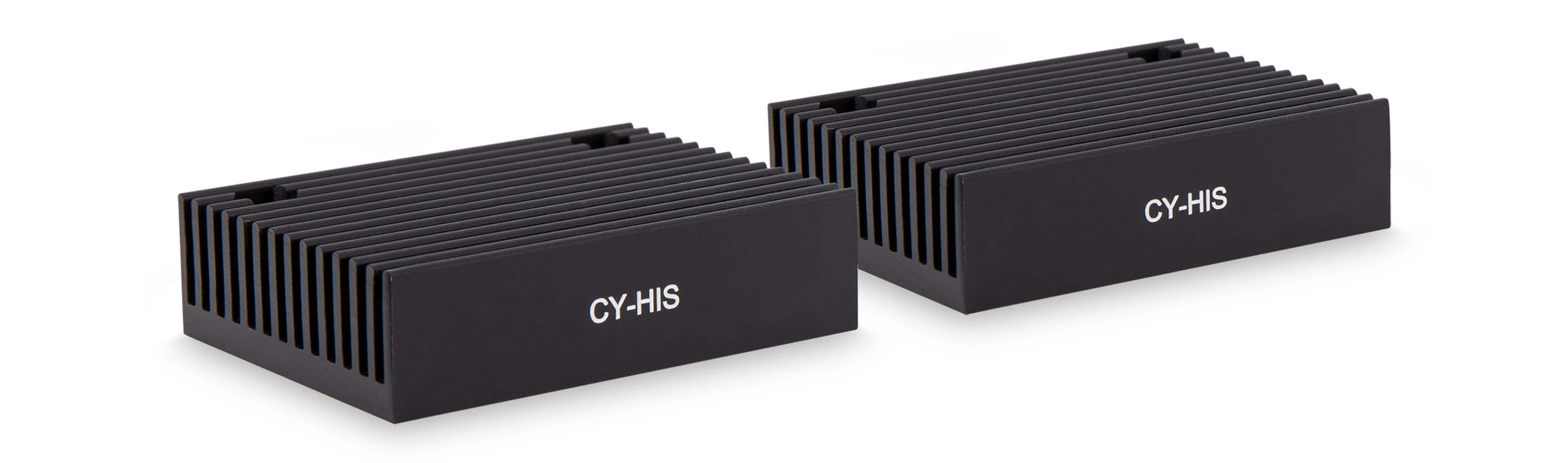

Heat Sinks#
- 订单号:2200001253
- 将根据此订单号交付两个散热片。每个散热片随附两颗螺钉,用于安装到相机侧面。
为获得出色的冷却效果,Basler 建议在相机任一侧使用两个散热片。
技术图纸#
物理规格#
尺寸 | 请参见技术图纸 |
材料 | 黑色阳极化铝 |
螺钉 | M4 × 7, DIN 7984 |
一般信息#
符合 RoHS | 是 |
保修 | 1 年 |

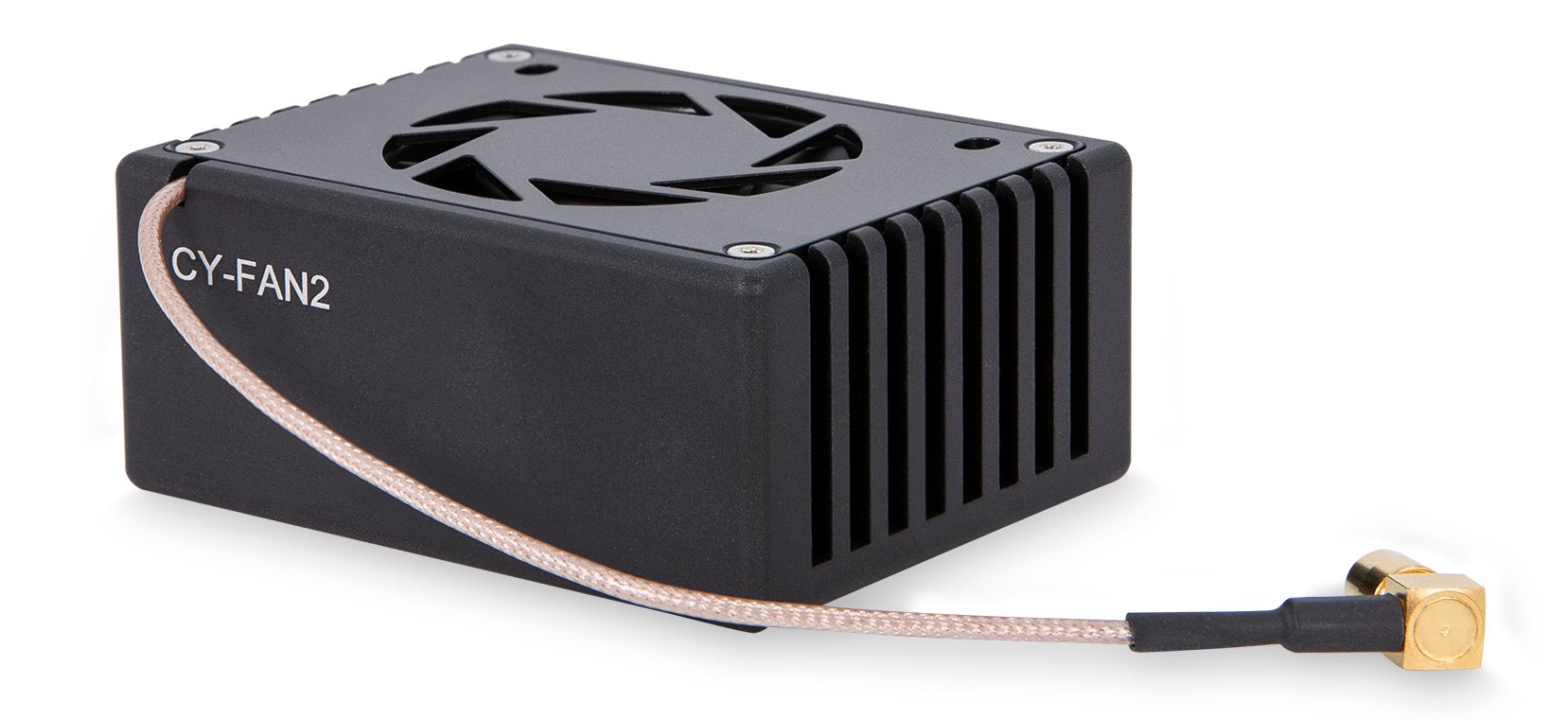

Active Fan#
- 订单号:2200001398
- 主动式风扇随附两颗螺钉,用于将主动式风扇安装到相机。
技术图纸#
物理规格#
尺寸 | 请参阅技术图纸 |
速度 | 5400 rpm |
电压范围 | 4.5-5.5 VDC |
功率输入 | 0.7 W |
线缆长度 | 150 mm |
主动式风扇连接器 | Rosenberger 59K204-301L5 |
螺钉 | M4 × 7 mm, DIN 7984 |
一般信息#
符合 RoHS | 是 |
KC Compliance | 是 |
保修 | 1 年 |
有关相机、安装和提供散热的详细信息,请参阅 boost V 相机型号的相关主题、硬件安装主题和提供散热主题。
