| Brief Description | |
|---|---|
|
File: \examples\Processing\Color\Bayer\BiColorDeBayering_racer2L_12bit.vad |
 |
|
Default Platform: imaFlex CXP-12 Penta |
|
|

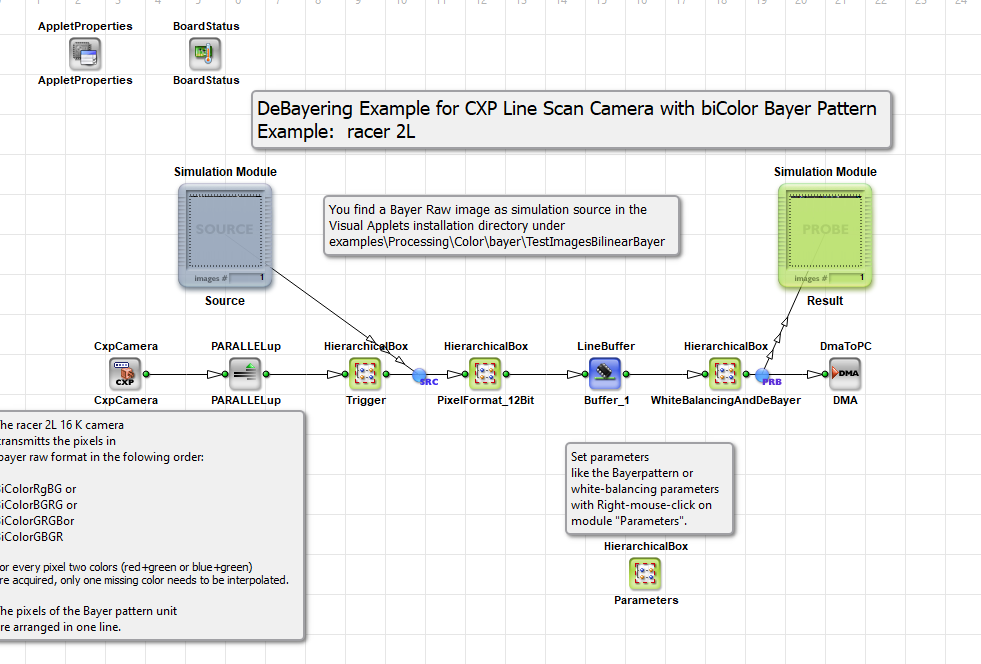

Short Description This example shows the demosaicing of a 12 bit Bayer RAW pattern for a CXP-12 line scan camera with BiColor Bayer pattern. |
|
This example shows the demosaicing of a 12 bit Bayer RAW pattern of a CXP-12 line scan camera with BiColor Bayer pattern: BiColorRGBG, BiColorGRGB, BiColorBGRG and BiColorGBGR, for example for the racer 2 L camera. In addition, the example contains a line scan trigger module and a white balancing module.
